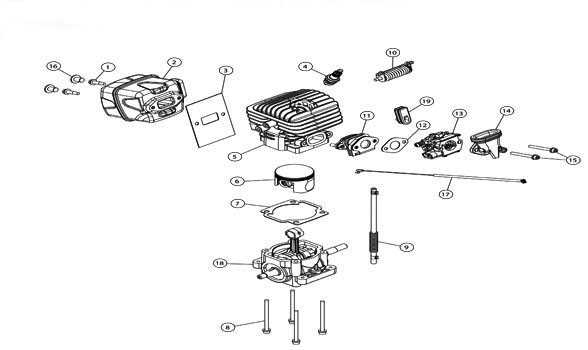

RM5118R GAS CHAINSAW MOTOR ASSEMBLY
Click on the Part Number for Picture, Price, and Where to buy.- 1 753-06397 Muffler Screw
- 2 753-06268 Muffler Assembly (includes 1, 3 & 19)
- 3 753-06398 Muffler Gasket
- 4 753-06269 Spark Plug
- 5 753-06724 Cylinder Assembly (includes 6, 8 & 10)
- 6 753-06725 Piston Assembly
- 7 753-06400 Cylinder Gasket
- 8 753-06402 Cylinder Hardware
- 9 753-06726 Breather Hose w/clamp
- 10 753-06404 Isolator Assembly
- 11 753-06727 Insulator Assembly
- 12 753-06406 Carburetor Gasket
- 13 753-06728 Carburetor
- 14 753-06385 Boot & Bracket Assembly (includes 16 & 17)
- 15 753-06410 Carburetor Hardware
- 16 753-06411 Grommet
- 17 753-06409 Throttle Cable
- 18 753-06729 Shortblock Assembly (includes 4 - 10)
- 19 753-06507 Muffler Plug
