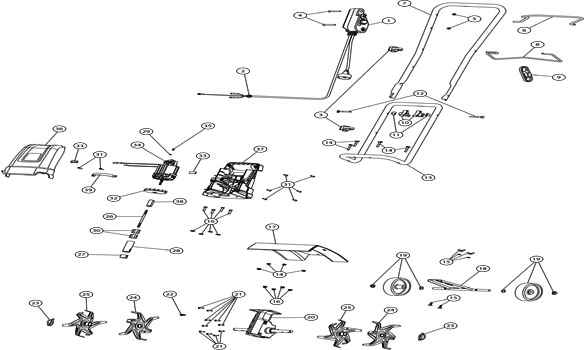

RM151C ELECTRIC TILLER
Click on the Part Number for Picture, Price, and Where to buy.
- 1 753-06370 Switch Assembly
- 2 753-04428 Bushing
- 3 753-04429 Cable guide
- 4 753-04430 Screw
- 5 753-05647 Nut
- 6 753-04432 Bail
- 7 753-06371 Upper Handle
- 8 753-04434 Guide Bar
- 9 753-04435 Cord Restraint
- 10 791-182677 Knob
- 11 753-04052 Washer
- 12 791-182899 Bolt
- 13 753-06372 Lower Handle Bar
- 14 791-182681 Hardware, Handle Bar Mounting (lower)
- 15 791-182684 Wheel Bracket Mounting Hardware
- 16 753-06373 Guard Mounting Hardware
- 17 753-06374 Guard
- 18 753-05024 Wheel Bracket Assembly
- 19 753-04437 Wheel Assembly
- 20 753-05982 Gear Box Assembly
- 21 791-182195 Screw
- 22 791-180288 Sleeve Retainer Bolt
- 23 753-05985 Click Pin
- 24 753-05984 Tine Assembly (Left Outer or Right Inner)
- 25 753-05983 Tine Assembly (Left Inner or Right Outer)
- 26 753-06383 Flex Shaft
- 27 753-04078 Sleeve
- 28 753-06375 Boom Tube
- 29 753-06376 Lock Washer
- 30 753-06377 Flex Tube Assembly
- 31 753-05274 Screw
- 32 791-180155 Fan
- 33 791-180503 Motor Pad
- 34 753-06378 Motor Assembly
- 35 791-145569 Screw
- 36 753-06380 Front Motor Cover
- 37 753-06379 Rear Motor Cover
- 38 753-06381 Motor Hub
- 39 753-06382 Motor Strap
