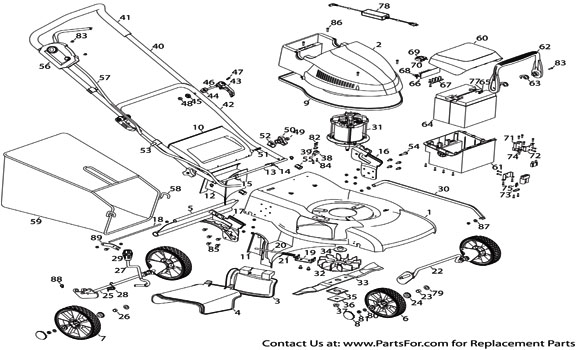

RM212B ELECTRIC BATTERY POWER MOWER
Click on the Part Number for Picture, Price, and Where to buy.
- 1 787-01839A Deck
- 2 731-07671 Shroud
- 3 731-07619 Mulch Door
- 4 731-07620 Discharge Chute
- 5 731-07621 Trail Shield
- 6 734-04537 Front Wheel
- 7 734-04548 Rear Wheel
- 8 731-07512 Wheel Cap
- 9 721-04378 Shroud Seal
- 10 731-07622 Rear Door
- 11 731-07623 Rear Baffle
- 12 731-07624 Mulch Plug
- 13 711-05358 Pin
- 14 732-04733 Spring
- 15 732-04734 Spring
- 16 787-01824A Left Bracket
- 17 787-08125A Right Bracket
- 18 711-05325 Trail shield Rod
- 19 787-01813 Mulch Door Bracket
- 20 711-05326 Mulch Door Rod
- 21 732-04713 Mulch Door Spring
- 22 611-04176 Front Axle Assembly
- 23 741-04464 Spacer Bushing
- 24 741-04474 Bearing
- 25 611-04177 Rear Axle Assembly
- 26 741-04465 Rear Shaft Bushing
- 27 732-04735 Handle Adjust
- 28 732-04715 Handle Adjust Spring
- 29 720-04143 Handle Adjust Knob
- 30 787-01826 Link Bar
- 31 724-04095 Motor
- 32 731-07515 Fan
- 33 742-04321 Blade
- 34 736-04486 Flange
- 35 731-07598 Washer
- 36 736-04487 Washer
- 37 712-04237 Blade Nut
- 38 731-07672 Support
- 39 731-07673 Strain Relief
- 40 749-04670A Upper Handle
- 41 731-07522 Handle Grip
- 42 749-04688A Lower Handle
- 43 720-04145 Quick Release
- 44 736-04488 Washer
- 45 720-04146 Quick Release Knob
- 46 710-05151 M8 Screw
- 47 715-04107 Quick Release Pin
- 48 712-04257 M8 Nut
- 49 712-04250 M6 Lock Nut
- 50 720-04147 Wing Knob
- 51 710-05082 Screw
- 52 736-04489 Washer
- 53 731-07524 Cord Clip
- 54 714-04088 Pin
- 55 731-07513 Cap
- 56 625-04129 Switch Box
- 57 725-05156 Cord
- 58 747-05304 Clamp
- 59 764-04096 Grassbag
- 60 731-07674 Battery Pack Cover
- 61 731-07675 Battery Pack Housing
- 62 731-07676 Handle
- 63 787-01840 Hook
- 64 725-05157 Battery
- 65 725-05158 Connector
- 66 725-05159 PCB
- 67 725-05160 PCB Support
- 68 725-05161 Connector
- 69 725-05162 Safety Key
- 70 725-05163 Key Connector
- 71 725-05164 SA50 Connector
- 72 725-05165 Supporter
- 73 731-07678 Supporter
- 74 725-05170 Connector
- 75 725-05169 Connector
- 76 725-05168 Fuse
- 77 725-05167 Board
- 78 725-05068 Charger
- 79 736-04505 Spring Washer
- 80 736-04506 8mm Washer
- 81 712-04258 M8 Nut
- 82 710-05156 ST4.2x16 Screw
- 83 710-05155 ST4.2x25 Screw
- 84 710-05154 ST4.8x16 Screw
- 85 710-05153 M6x12 Screw
- 86 710-05118 M5 x 12 Screw
- 87 714-04508 Washer
- 88 716-04169 10mm Lock Ring
- 89 787-01841 Support
