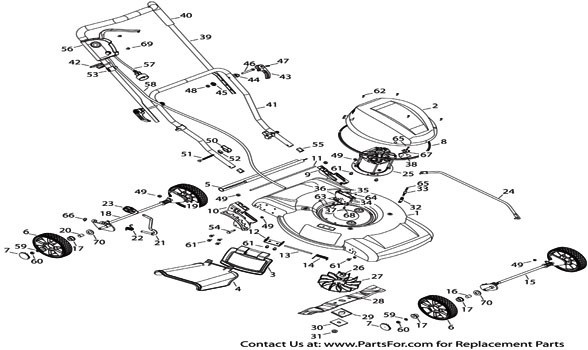

RM202A ELECTRIC MOWER
Click on the Part Number for Picture, Price, and Where to buy.
- 1 787-01810 Deck
- 2 731-07507 Shroud
- 3 731-07508 Mulch Door
- 4 731-07509 Discharge Chute
- 5 731-07510 Trail shield
- 6 734-04553 Wheel
- 7 731-07512 Wheel Cap
- 8 721-04378 Shroud Seal
- 9 787-01811 Left Wheel Bracket
- 10 787-01812 Right Wheel Bracket
- 11 711-05325 Trail shield Rod
- 12 787-01813 Mulch Door Bracket
- 13 711-05326 Mulch Door Rod
- 14 732-04713 Mulch Door Spring
- 15 611-04183 Front Shaft Assembly
- 16 736-04483 Spacer Bushing
- 17 731-07706 Wheel Bushing
- 18 611-04184 Rear Shaft Assembly
- 19 736-04484 Spacer Bushing
- 20 736-04485 Spacer Bushing
- 21 732-04714 Height Adjust Handle
- 22 732-04715 Height Adjust Spring
- 23 720-04143 Height Adjust Knob
- 24 787-01814 Height Adjust Rod
- 25 724-04088 Motor
- 26 736-04486 Flange
- 27 731-07515 Electric Motor Fan
- 28 742-04313 Blade
- 29 731-07598 Washer
- 30 736-04487 Washer
- 31 712-04237 Nut
- 32 731-07516 Strain Relief Bracket
- 33 731-07520 Strain Relief Cap
- 34 725-05071 Resistor
- 35 725-05119 Resistor Holder
- 36 731-07599 Resistor Bracket
- 37 725-05118 Resistor Base
- 38 725-05121 Rectifier Heat Sink
- 39 749-04670 Upper Handle
- 40 731-07522 Handle Grip
- 41 749-04671 Lower Handle
- 42 731-07523 Cord Retainer
- 43 720-04145 Quick Release Handle
- 44 736-04488 Washer
- 45 720-04146 Quick Release Knob
- 46 714-04086 Quick Release Pin
- 47 715-04107 Pin
- 48 712-04239 Nut
- 49 712-04250 Nylock Nut
- 50 720-04147 Wing Knob
- 51 710-05082 Screw, M8
- 52 736-04489 Washer
- 53 731-07524 Cord Clip
- 54 714-04088 Shoulder Bolt
- 55 731-07513 Cap
- 56 625-04125 Switch Box Assembly
- 57 725-05115 AC Power Cord
- 58 725-05116 Motor Cord
- 59 736-04497 Flat Washer
- 60 712-04247 Lock Nut
- 61 710-05117 Screw, M6 x 12
- 62 710-05118 Screw, M5 x 12
- 63 710-05120 Screw, M4 x 16
- 64 712-04248 Lock Nut
- 65 710-05119 Screw, M4.2 x 16
- 66 716-04162 Lock Ring
- 67 725-05117 Rectifier
- 68 710-05123 Screw, M4.8 x 16
- 69 710-05124 Screw, M4.2 x 25
- 70 736-04505 Spring Washer
